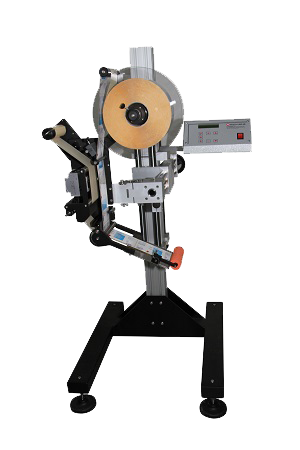

GIOVE – 140
The applicator of self-adhesive labels to match with production lines, ideal for mounting on flat or slightly irregular. The labeling head JUPITER can be used for applications above or to the side. The main feature of the model Simplicity in installation and use. The Head Jupiter is available left and right (on all units).
Technical features
- Speed – variable from 0-30mt.
- Max label width – 140 mm.
- Width min. label – 10 mm.
- Max label length – 500 mm (other sizes on request)
- Length min. label – 10 mm
- Inner Diameter min. coil – 38 mm. (76 with adapter)
- Max. Outside diameter – 300 mm.
- Type motor – step / step
- Electronic control unit controlled by a microprocessor with display, ability to handle speed of delivery, __ delay start, pre-label distribution, a counting
- Starting photocell
- Reading labels by photocell
- Supply voltage – 220 or 110 V 50/60 Hz
- Weight – 15 kg
